LeClerc 24" loom in 4, 8, 12 & 16 harness

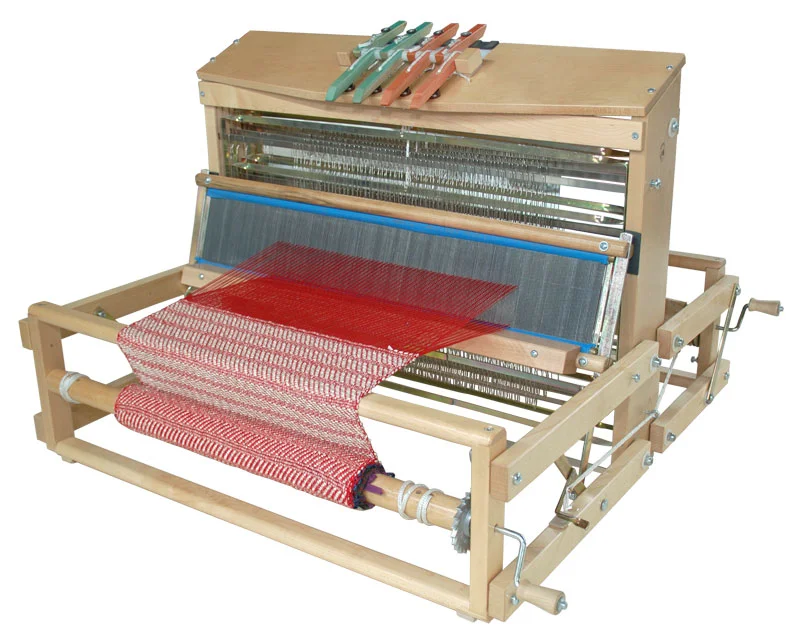

VOYAGEUR 4s
We at Leclerc designed the Voyageur loom following demands for an 8s loom with front levers and easy portability.
This 4s Voyageur has the advantage of being smaller and lighter. It is for the beginner or those who just want a 4s, 24" weaving width.
The 24" model weighs in at 25 lbs., comes with 600 inserted Eye Heddles, and a Stainless Steel Reed. As with the 8s loom, we supply a specially designed
(1" profile) Cherry Shuttle, Reed and Heddle Hook, 2 Lease Sticks, 2 Beam Sticks, the newly designed Warp and Cloth Roll lashing system, one Multi bits Screwdriver, transfer Heddle Bars and the Book "Warp and Weave" by Robert Leclerc.
Our new Voyageurs are set up with Levers starting with #1 on the right (standard). If you prefer we can set your Loom up with #1 Lever starting on the left at no extra charge. In addition for those who choose, Texsolv Heddles and the new Swinging Beater are available at no extra charge.
For those who prefer even greater versatility, the Swinging Beater is also available in a Kit. The Beaters can be interchanged in a few minutes.
STANDARD EQUIPMENT
» Stainless Steel Reed, 12 dents/inch
» 1 boat shuttle 6122-0000
» 1 reed and heddle hook 6141-7000
» 2 metal lease sticks
» 10 loop cords for lashing
» Transfer heddle Bars
» Instructions
» Book "Warp and Weave"SPECIFICATIONS & DIMENSIONS
Weaving width: 24” 60 cm
Quantity of heddles: 600
Loom width: 28.5" 72 cm + Crank handle
Depth: 26¾"
Height: 21” 54 cm
Net weight: 25 lbs 11.34 kg.
Dimensions when folded: 11¼ X 28½" X 20¾" h
VOYAGEUR 8s 24"
The 24" model weighs in at 29 lbs., comes with 600 inserted Eye Heddles, and a Stainless Steel Reed. As with the 8s loom, we supply a specially designed (1" profile) Cherry Shuttle, Reed and Heddle Hook, 2 Lease Sticks, 2 Beam Sticks, the newly designed Warp and Cloth Roll lashing system, one Multi bits Screwdriver, transfer Heddle Bars and the Book "Warp and Weave" by Robert Leclerc.
Our new Voyageurs are set up with Levers starting with #1 on the right (standard). If you prefer we can set your Loom up with #1 Lever starting on the left at no extra charge. In addition for those who choose, Texsolv Heddles and the new Swinging Beater are available at no extra charge.
SPECIFICATION
Weaving width: 24"Loom depth: 27.¾"Net weight: 29 lbsLoom width: 28½" + crank handleLoom height: 21"Loom Dimension when fold:
28½"w, 13¼"d, 20¾"h)
STANDARD EQUIPMENT
Stainless Steel reed 12 or 15 dt.1 boat shuttle (Slim Cherry)Inserted eye heddles 9½"1 reed and heddle hook 6141-70002 Metal lease sticksWarp & Cloth Roll lashing systemInstructionsBook "Warp&Weave"Transfer Heddles BarsStandard or Swinging Beater

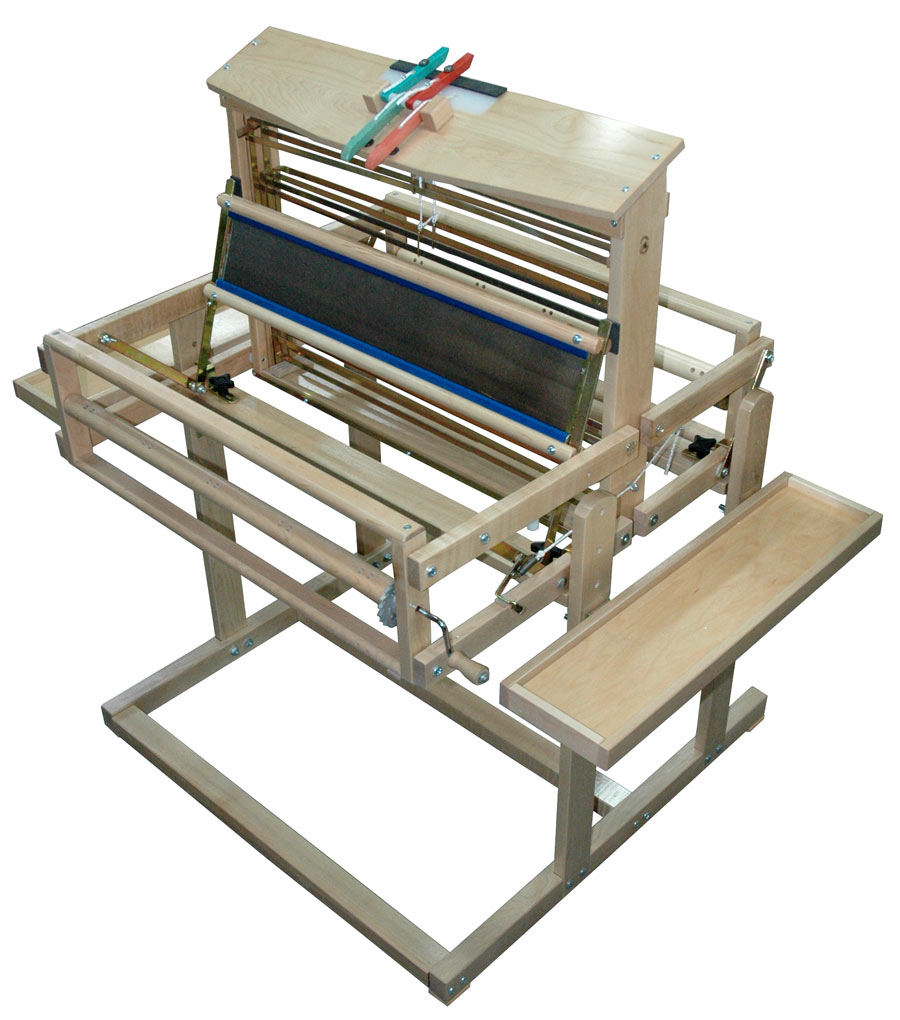

VOYAGEUR 12s & 16s 24"
In our ongoing effort to meet the Workshop Weaver's needs, Leclerc has expanded its family of Voyageur Looms to include a 12 and 16 shaft, 24" model. It has all the features demanded by the weavers around the world who helped us to develop our 8 shaft Voyageur, but now has the versatility of more Shafts.
The standard equipment remains the same-- stainless steel reed, inserted eye heddles (500 for the 12 shaft), color coded levers, choice of standard or swinging beater, our designer bag for carrying, and much more.As in the original 8 shaft model, weight and ease of folding were the most important considerations. With its proven performance, we are confident that our new 12 or 16 shaft, 24" Voyageur is the best the market has to offer.
SPECIFICATION 12s 16s Weaving width
:24"Loom Depth:30"32"
Loom width:28½" + crank28½" + crankLoom
height:21"21"
Net Weight:App. 32 lbs
App 50 lbs
Loom Dimension when fold:28½" w, 14½" d, 20¾" h28½" w, 16" d, 20¾" h
STANDARD EQUIPMENT
Stainless Steel reed 12 dt
.1 boat shuttle (Slim Cherry
)Inserted eye heddles 9½"
1 reed and
heddle hook
6141-70002 Metal lease sticks
Warp & Cloth Roll lashing system
InstructionsBook "Warp&Weave"
Transfer Heddles Bars
Standard or Swinging Beater
